MIPI M-PHY v5.0/v4.1/v3.1

MIPI M-PHY v5.0

MIPI M-PHY is a serial interface technology with high bandwidth capabilities, which is particularly developed for mobile applications to obtain low pin counts along with excellent power efficiency. As a MIPI Alliance contributor and leading Interface IP provider, M31 provides silicon-proven and low-power M-PHY in various process nodes. The M-PHY IP is optimized for UFS (Universal Flash Storage) applications, follows MIPI M-PHY v5.0 spec, supports a wide range of high-speed (HS) and low-speed (LS) data transfer, and complies with the RMMI interface for seamless integration with upside controllers. Moreover, M31 also provides various lane configurations for the M-PHY IP to meet different bandwidth requirements.

MIPI M-PHY v4.1/v3.1

MIPI M-PHY is a serial interface technology with high bandwidth capabilities, which is particularly developed for mobile applications to obtain low pin counts along with excellent power efficiency. As a MIPI Alliance contributor and leading Interface IP provider, M31 provides silicon-proven and low-power M-PHY in various process nodes. The M-PHY IP is optimized for UFS (Universal Flash Storage) applications, follows MIPI M-PHY v4.1 spec, supports a wide range of high-speed (HS) and low-speed (LS) data transfer, and complies with the RMMI interface for seamless integration with upside controllers. Moreover, M31 also provides various lane configurations for the M-PHY IP to meet different bandwidth requirements.

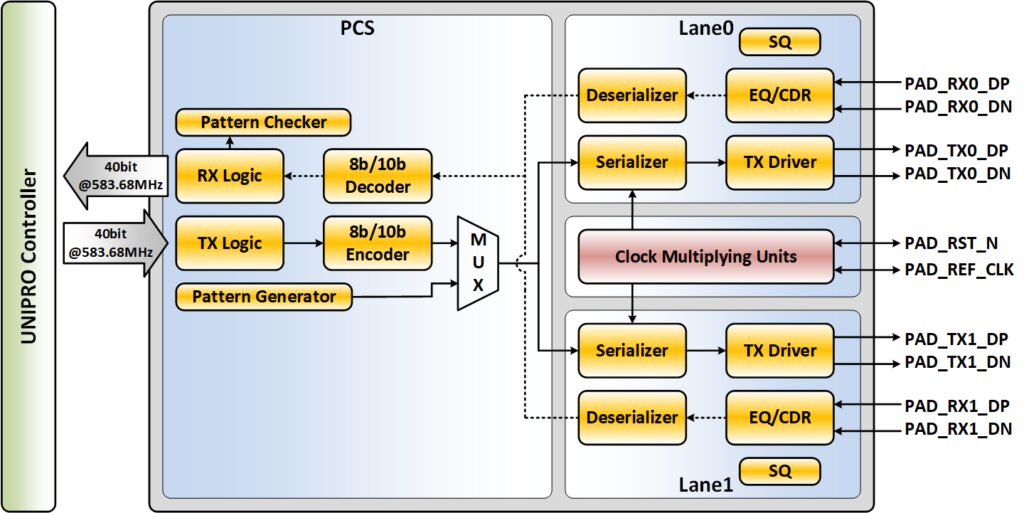

Block Diagram：MIPI M-PHY

  • IP Product Lists
  • M-PHY v5.0 Features
  • M-PHY v4.1 Features
  • M-PHY v3.1 Features
  • MIPI MPHY v4.1, 2Tx-2Rx Type-1, TSMC N5A, 1.2V, N/S orientation(ASIL-B)
  • MIPI MPHY v4.1, 2Tx-2Rx Type-1, TSMC N6, 1.8V, N/S orientation(ASIL-B)
  • MIPI MPHY v4.1, 2Tx-2Rx Type-1, TSMC N7, 1.8V, N/S orientation(ASIL-B)
  • MIPI MPHY v3.1, 2Tx-2Rx Type-1, TSMC 12FFC, N/S orientation(ASIL-B)
  • MIPI MPHY v3.1, 2Tx-2Rx Type-1, TSMC 16FFC, N/S orientation(ASIL-B)
  • MIPI MPHY v3.1, 2Tx-2Rx Type-1, TSMC 28HPC+, N/S orientation
  • MIPI MPHY v3.1, 1Tx-1Rx Type-1, TSMC 55LP,
  • MIPI MPHY v3.1, 2Tx-2Rx Type-1, UMC 22ULL 1.8V, N/S orientation
  • MIPI MPHY v3.1, 1Tx-1Rx Type-1, SMIC 40LL, N/S orientation
  • Complies with MIPI M-PHY specification v5.0 and CTS v5.0
  • Support M-PHY RMMI spec. (40/80bits) for UFS host & device applications
  • Support 2Tx/2Rx structure with 1-port device only
  • Optimized for High-Speed gear G1A/G1B/G2A/G2B/G3A/G3B/G4A/G4B/G5A/G5B
  • Support Type-1 PWM G1 NT in LS PWM mode
  • Support multiple signal amplitude
  • Build-in at-speed DFT and BIST functions
  • Adaptive EQ for MPHY HSG5
  • Supports RMMI interface for applications such as UNIPRO protocol (UFS, CSI-3, DSI-2)
  • High speed gears, HS-G1A/B, HS-G2A/B, HS-G3A/B and HS-G4A/B with scalable power consumptions
  • Low speed PWM Gears from G1 to G4 with ultra-low power consumptions
  • Supports reference-less function during low-speed operation
  • Common lane configuration facilitates the lane scalability
  • Low latencies to switch to/from different power states
  • Supports multiple signal amplitudes
  • Supports internal loopback BIST functions for at-speed mass production testing
  • Supports RMMI interface for applications such as UNIPRO protocol (UFS, CSI-3, DSI-2) and DigRF
  • High speed gears, HS-G1A/B, HS-G2A/B and HS-G3A/B with scalable power consumptions
  • Burst mode CDR with short sync length (< 16SI)
  • Low speed PWM Gears from G1 to G4 with ultra-low power consumptions
  • Supports reference-less function during low-speed operation
  • Common lane configuration facilitates the lane scalability
  • Low latencies to switch to/from different power states
  • Supports multiple signal amplitudes
  • Supports internal loopback BIST functions for at-speed mass production testing
  • Certified with ASIL-B of ISO 26262
